  1. Learn
  2. Introduction

Obol vs Other DV Implementations

Some of the key terms in the field of Distributed Validator Technology

PreviousKey Staking ConceptsNextObol Splits

Last updated 5 days ago

This page outlines the unique features of Obol's DV implemenation, constrasting with other DV implementations. We built Obol’s DVT as a middleware to keep Ethereum secure, resilient, and composable. See also the blog article .

No private keys put on chain

Obol's distributed key generation (DKG) event generates key shares for each node within the DV cluster. The entire validator key NEVER exists in one place. Keys are generated locally on the nodes, and can be backed up. The private keys of Obol DVs are NEVER uploaded to the internet or published on-chain.

An alternative approach to doing this is to split it into shares, encrypt each share with the public key of a node operator, and publish the encrypted private key on chain. The operators’ node key could then decrypt the validator private key. In our opinion, this is not secure. We believe that the safest approach is to avoid the existence of a singular private key, and certainly never to post any private key to a public blockchain network.

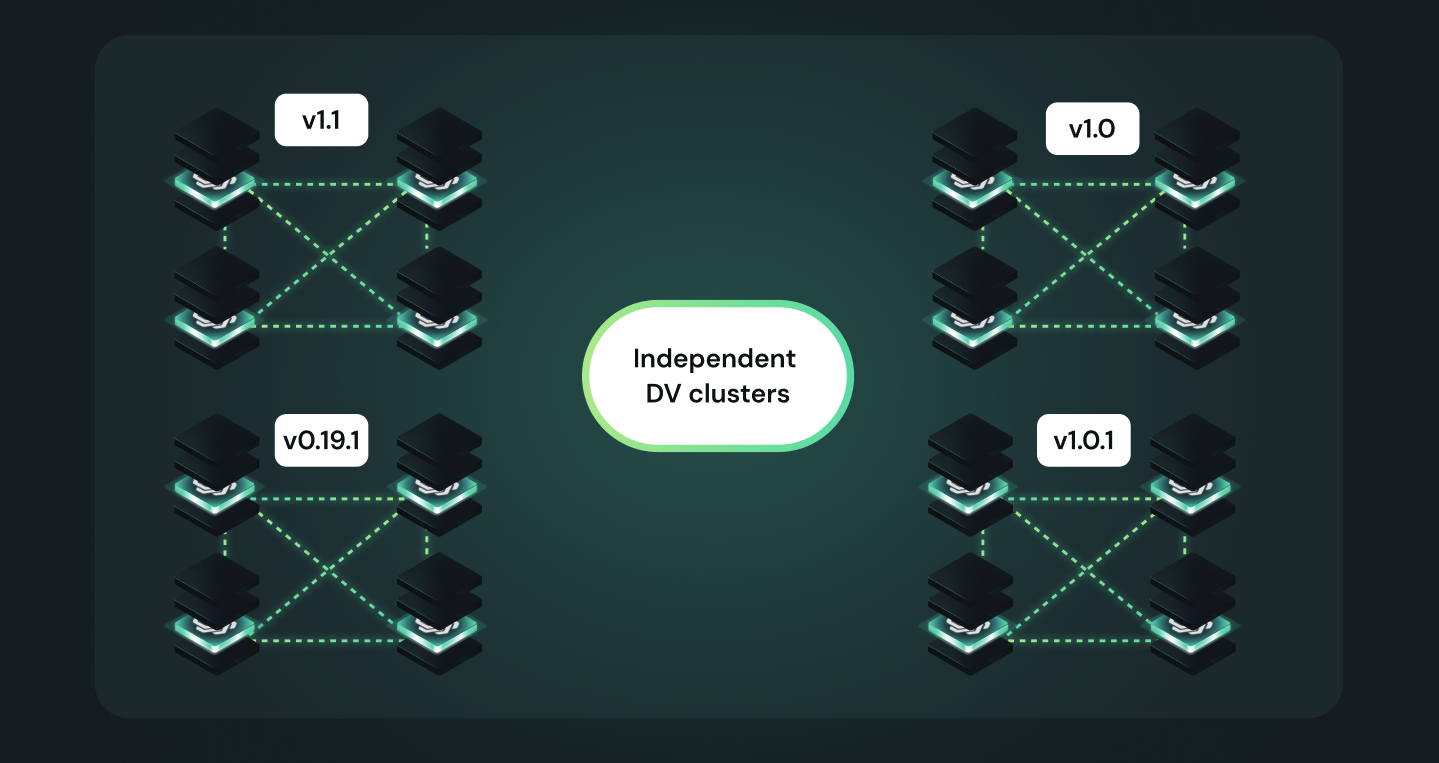

Cluster independance: Clusters can upgrade independently

In an Obol DV cluster, nodes use LibP2P to communicate directly with each other, and communications are end-to-end encrypted with TLS. Clusters are independent from one another, can run different versions of Charon, and don't need to upgrade together. This means that when a new version of Obol’s Charon is released, Obol DV clusters can upgrade on their own time, individually from other DV clusters. Charon will NEVER require a hard fork or simultaneous updates across clusters for any upgrades.

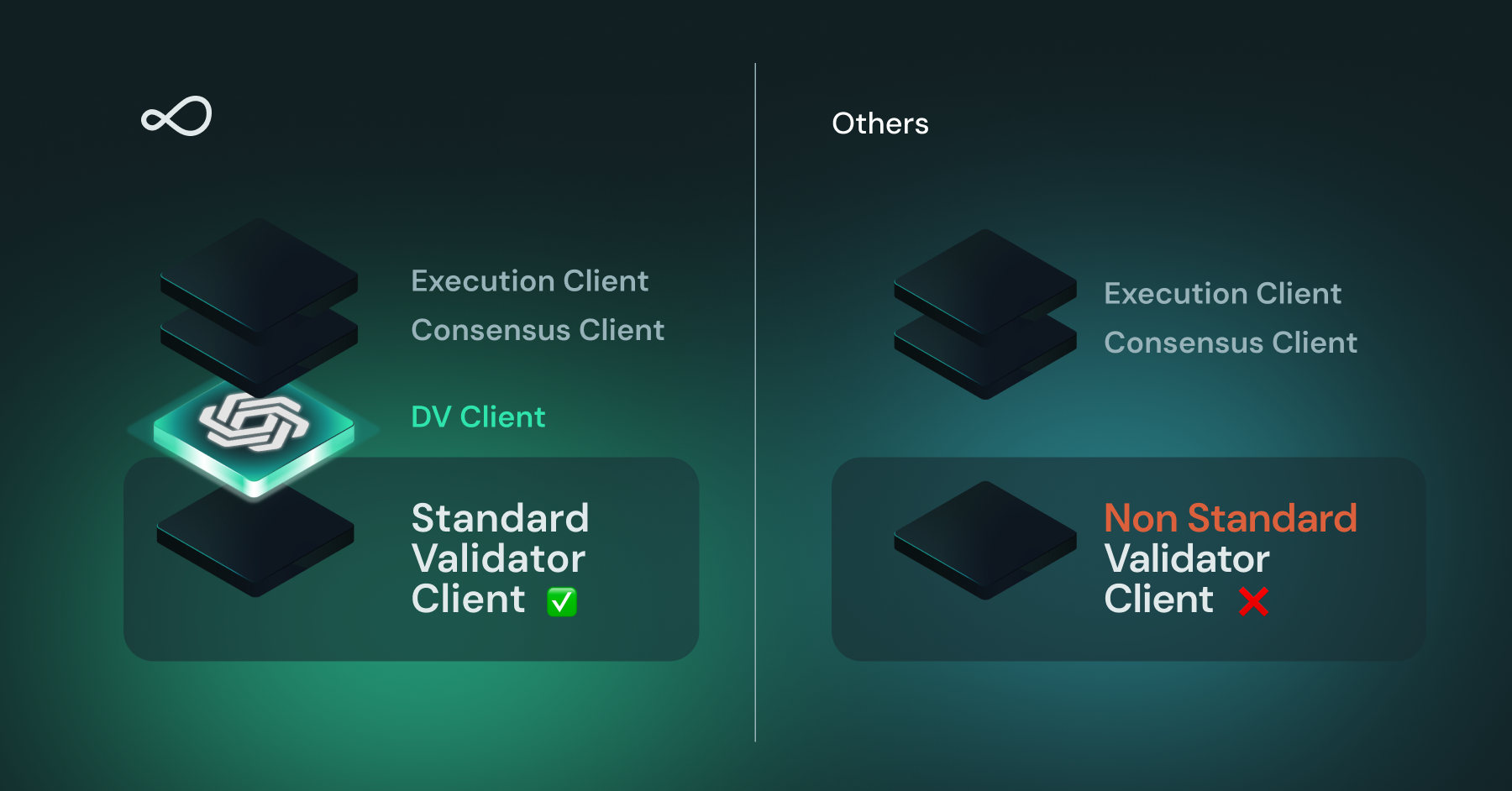

Works with existing validator clients and PKI

We built Obol’s DV implementation as a secure and trust-minimised middleware architecture. Our middleware client, Charon, doesn’t replace anything in the client stack, instead it sits between the consensus and validator clients. Node operators integrating the Charon DVT middleware into their stack can continue to use the same clients and private key infrastructure as before, albeit with a different key generation method.

The alternative approach to DV design is to replace the validator client with a DV-native client, which has custody of the private keys and the capability to sign arbitrary data. However, in our opinion a full validator client capable of signing and exfiltrating arbitrary data without the oversight of a second software implementation has much higher risk of causing correlated slashing.

This gives the benefit of having both Charon and the existing validator client as failsafes, greatly reducing the odds of unintended slashing. Even in the worst case scenario where Charon is compromised by a supply chain attack or a remote code execution attack, or the Obol team become bad actors and push a malicious release, Charon cannot do a lot of damage as a middleware. If a compromised Charon client proposes a potential double vote or surround vote for a validator to sign, the validator client will check its anti-slashing database, see that it has already signed something conflicting, and simply refuse to return a signature. Charon could propose that a validator should sign an invalid block, but the chain would reject this and simply consider the proposal missed - a much better outcome than slashing.

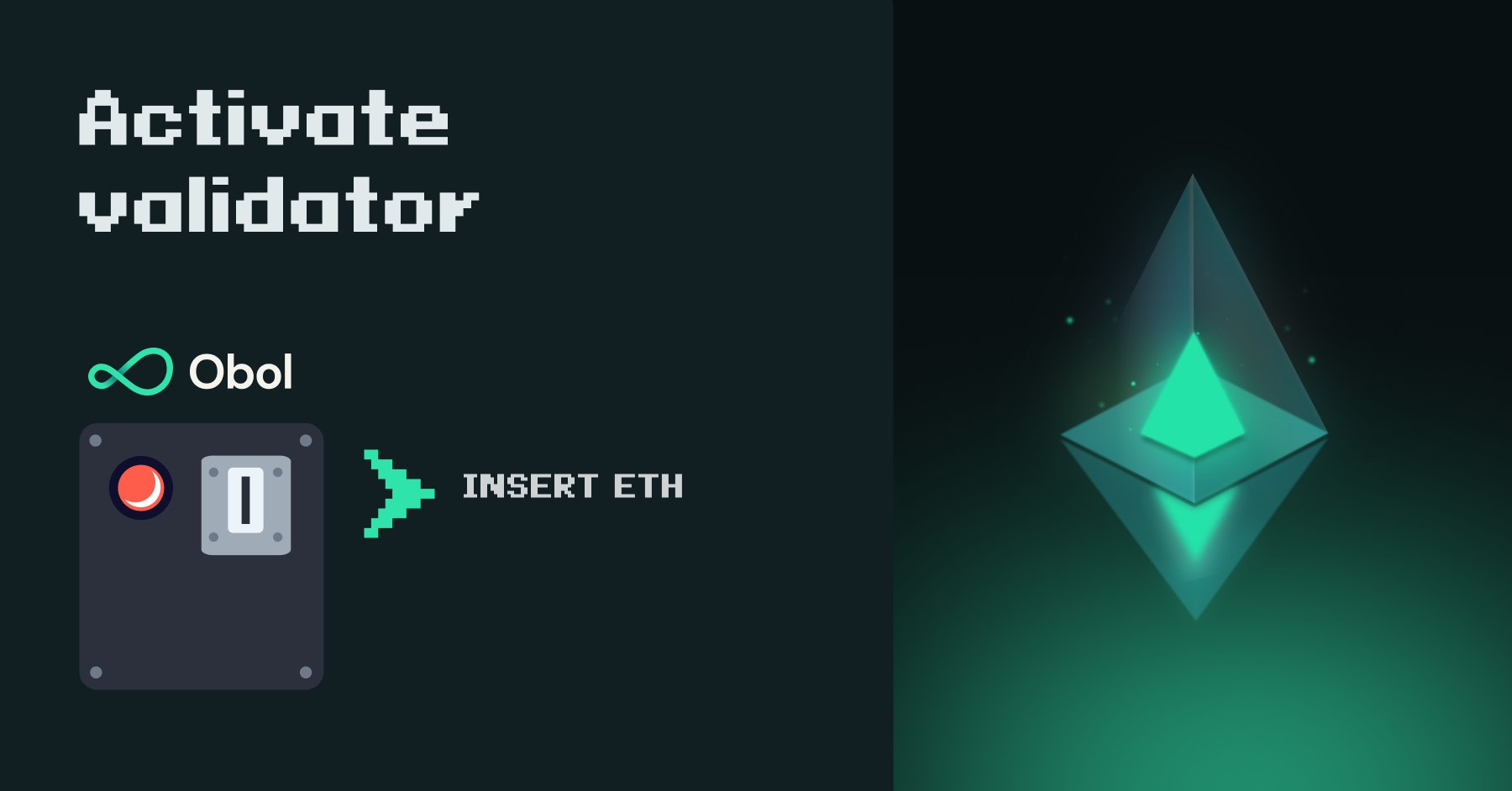

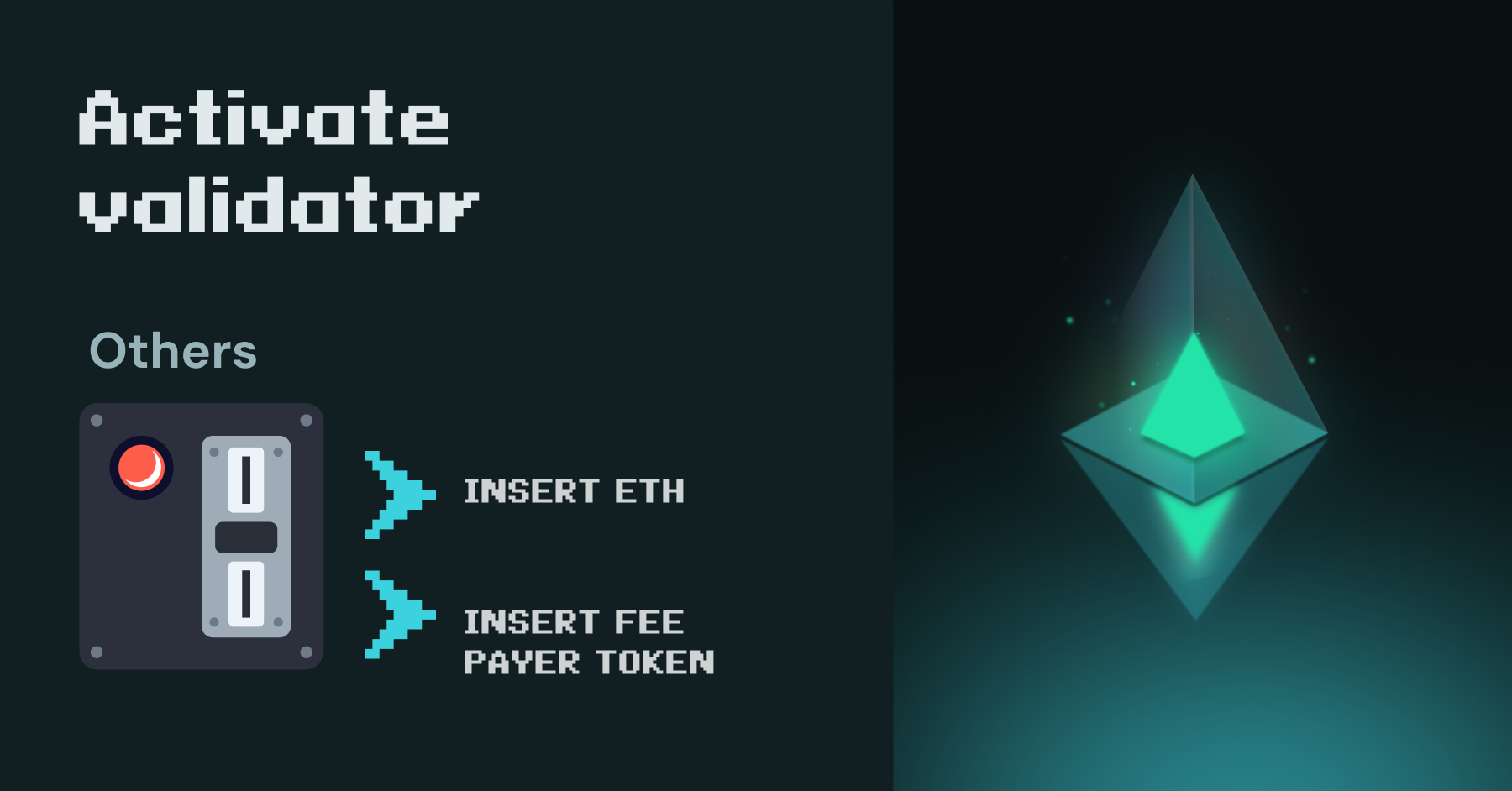

No non-ETH token risk

The alternative approach is to create a token and require stakers to pay operators in that token. This would require stakers to keep a balance of the network token ready for fee paying, in order to continue using the staking service. This mechanism would be informed by oracles, which decide when to post rewards and punish operators. This alternative model has some drawbacks. Namely, the varying price of the network’s unique token will change relative to the price of ETH: operators are not able to determine their commission as a percentage of ETH staked, and stakers likewise must consider the additional initial cost of purchasing the token to determine their long-term rate of return on their staked ETH.

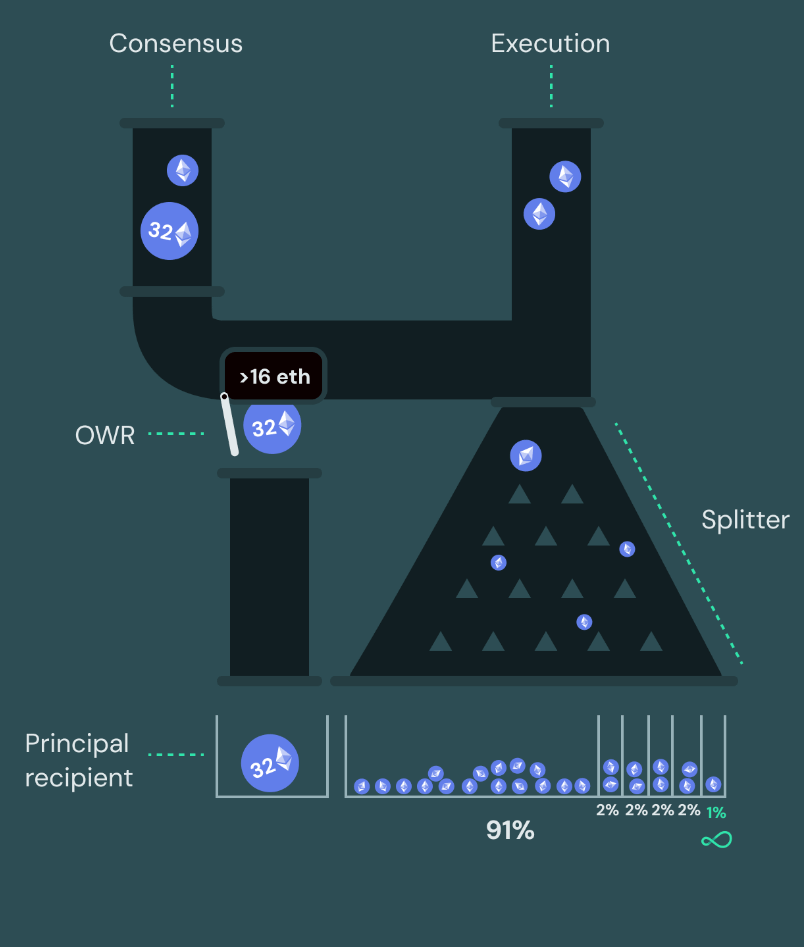

Non-custodial reward splits

To pay out rewards to operators, splitter contracts like Obol Splits can be used to withdraw and share rewards on a continuous basis. Two key goals of validator reward management are: 1. To be able to differentiate reward ether from principal ether such that node operators can be paid a percentage of the reward they accrue for the principal provider, rather than a percentage of principal and reward. 2. To be able to withdraw the rewards in an ongoing manner without exiting the validator. This allows products like liquid staking protocols to be built on top of Obol, implementing a bond or unique token into their protocol, should they choose to do so.

Obol makes no changes to Ethereum’s standard bonding and reward mechanism, and does not require nodes to post any bonds additional to the 32 ETH required for a validator. To pay out rewards to operators, splitter contracts like can be used to withdraw and share rewards on a continuous basis. This allows products like liquid staking protocols to be built on top of Obol, implementing a bond or unique token into their protocol, should they choose to do so.

(see also the , and the .)

Obol Splits
docs page on Splits
Splits.org blog article
Why We Built Charon as a Middleware
